| Thursday, 29 November 2018, 10:30 HKT/SGT | |
| |  | |
Source: Fujitsu Ltd | |
|
|
|
|
| Compact base stations can be deployed in stadiums, train stations, other sites |
TOKYO, Nov 29, 2018 - (JCN Newswire) - Fujitsu Laboratories Ltd. today announced the development of the world's first equipment technology to enable simultaneous communications to four users with a single antenna panel in the 28-GHz band, in the world's most compact structure. The equipment delivers high-speed communications in excess of 10 Gbps, as required by 5G mobile communication formats. The use of 5G is premised on deployment of base stations with comparatively small coverage areas placed every few tens of meters. Given this, it will be necessary to have equipment of a compact size that can be deployed anywhere. Conventional 5G system structures require use of an antenna panel for each terminal when simultaneously transmitting to multiple terminals. Now, by controlling with high accuracy the phase (angle) of signals separately emitted from 128 antenna elements, Fujitsu Laboratories has suppressed the interference between signals. This enables simultaneous communications in four directions using only one antenna panel. Moreover, the company can vary signals in both horizontal and vertical directions, successfully expanding the communications area. With these developments, components can now be fit on a single 13 cm2 printed circuit board, instead of two or more antenna panels required with conventional technology. This will enable the deployment of compact base stations and high-speed 5G communications in locations where many people gather, such as around train stations and in stadiums.
 | | Figure 1: Configuration of equipment developed to communicate simultaneously with four users with one antenna panel |
 | | Figure 2: Throughput improved with highly accurate phase control |
 | | Photo: The antenna panel developed by Fujitsu |
Development Background
The spread of smartphones, 4K image resolution, and VR has raised demand for high-speed wireless communication. Meanwhile, problems like transmission delays and poor connections due to insufficient wireless communications capacity are occurring in urban centers, stadiums, and event venues, and anywhere many people gather. To remedy these shortcomings, the development of 5G, which uses the millimeter wave band to secure a wide frequency band, is being carried out globally, with the goal of commercial deployment around 2020. While 5G can provide high-speed, high-capacity communications in excess of 10 Gbps, its radio waves are very one-directional and blocked by obstacles. As such, the use of a method called small cells, in which base stations are deployed every few tens of meters, is anticipated. Commercialization also requires compact equipment that can be easily installed in any location.
Issues
5G base stations make use of a technology called beam-forming, which controls the phase of signals emitted from the multiple antenna elements on the antenna panel and concentrates the radio waves in the desired direction. This divides and multiplexes beams, to handle simultaneous communications with multiple users. Currently, to avoid radio wave interference during communications with multiple users at once, base stations have been configured to use a number of antenna panels corresponding to the number of concurrent users. To miniaturize the equipment so that it can be deployed anywhere, the best option is to provide multi-directional transmissions from a single antenna panel.
About the Newly Developed Technology
Fujitsu Laboratories developed a phased array chip using a technology (patent registered) that can regulate the phase of a signal propagated from an antenna element with accuracy of one degree or less, and built into the panel one phased array chip per eight antenna elements. The company also uses circuitry that detects the differences in phase between phased array chips, which enables highly accurate phase control for any size antenna panel that has between 64 and 256 antenna elements. As a result, by holding the difference in undesired emissions intruding between one radio wave communicating with a device and another radio wave with another device to 20dB or more, it makes it possible for a single antenna panel to carry out high-capacity communications of 10 Gbps or more. Detecting the phase differences from the signals produced by each antenna element and controlling the phase with high accuracy to concentrate the signal in the desired direction, these technologies successfully led to compact equipment that transmits to four users simultaneously with just one antenna panel. The compact equipment propagates radio waves on two axes, including horizontal and vertical directions, enabling wide-area communications with users.
http://www.acnnewswire.com/topimg/Low_FujitsuFigure1ConfigurationEquipment%20.jpg

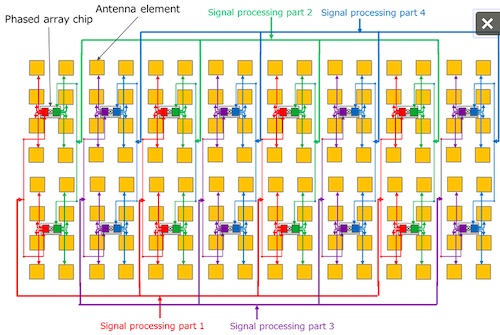

Figure 1: Configuration of equipment developed to communicate simultaneously with four users with one antenna panel
http://www.acnnewswire.com/topimg/Low_FujitsuFigure2PhaseControl.jpg
Figure 2: Throughput improved with highly accurate phase control
Effects
These technologies led to the prototyping of a 13 cm2 antenna panel equipped with 128 antenna elements and 16 phased array chips. Accordingly, Fujitsu Laboratories confirmed that a single antenna panel can deliver high-speed transmissions of 2.5 Gbps per person, for a total of 10 Gbps, and carry out beam multiplexing in four directions. By using this antenna panel, it will be possible to build small, energy efficient 5G base stations.
http://www.acnnewswire.com/topimg/Low_FujitsuAntennaPanel.jpg

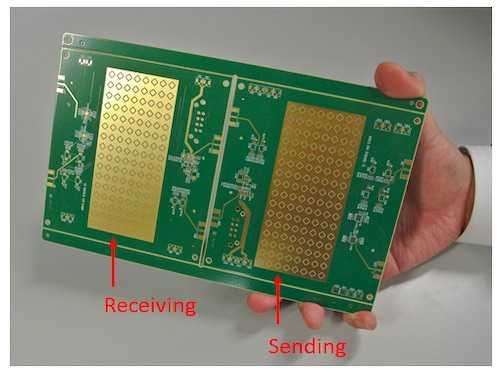

Photo: The antenna panel developed by Fujitsu
Future Plans
Fujitsu Laboratories will continue to raise the performance and reliability of this technology, and aim for commercialization around 2021.
About Fujitsu Laboratories
Founded in 1968 as a wholly owned subsidiary of Fujitsu Limited, Fujitsu Laboratories Ltd. is one of the premier research centers in the world. With a global network of laboratories in Japan, China, the United States and Europe, the organization conducts a wide range of basic and applied research in the areas of Next-generation Services, Computer Servers, Networks, Electronic Devices and Advanced Materials. For more information, please see: http://www.fujitsu.com/jp/group/labs/en/.
Contact:
Fujitsu Laboratories Ltd.
Wireless Research Center
E-mail: mm-wave@ml.labs.fujitsu.com
Fujitsu Limited
Public and Investor Relations
Tel: +81-3-3215-5259
URL: www.fujitsu.com/global/news/contacts/
